ENEC
UL 508
CSA 22.2Marks per Tecnomatic Control Transformer catalog.
Product images
Specifications
| Rating | 100 VA |
| Primary voltage | 208 / 240 / 480 V |
| Secondary voltage | 120 V |
| Protection | Fused |
| Frequency | 50/60 Hz |
| Certifications | UL · CSA · ENEC |
| Part number | T100208X120F |
| Shipping weight | 5.0 lb |
| Secondary | 120V |
Description

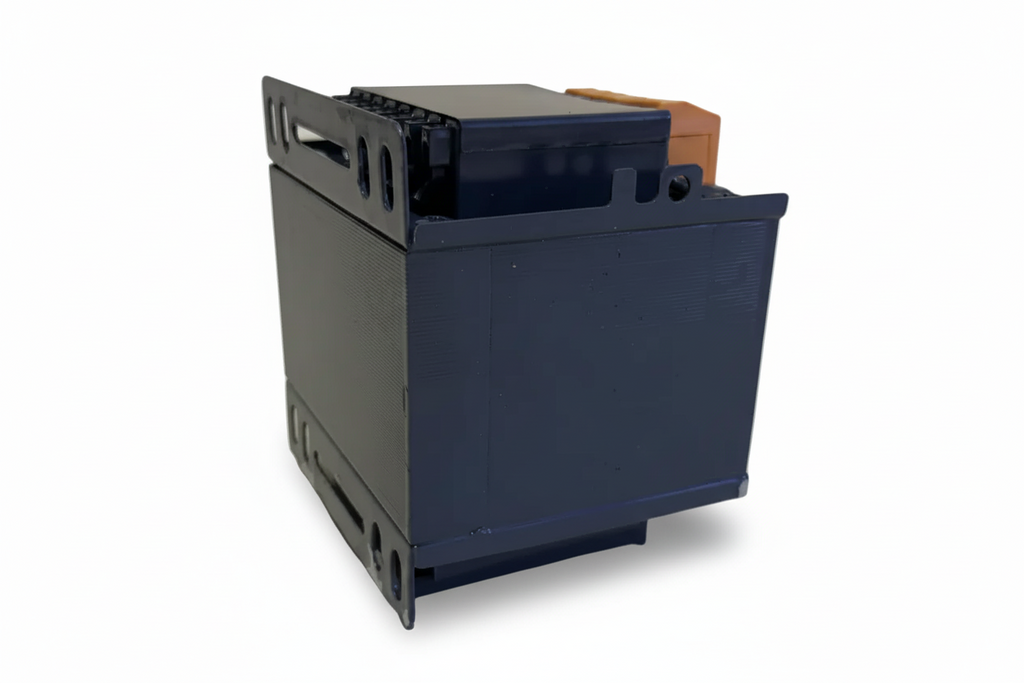

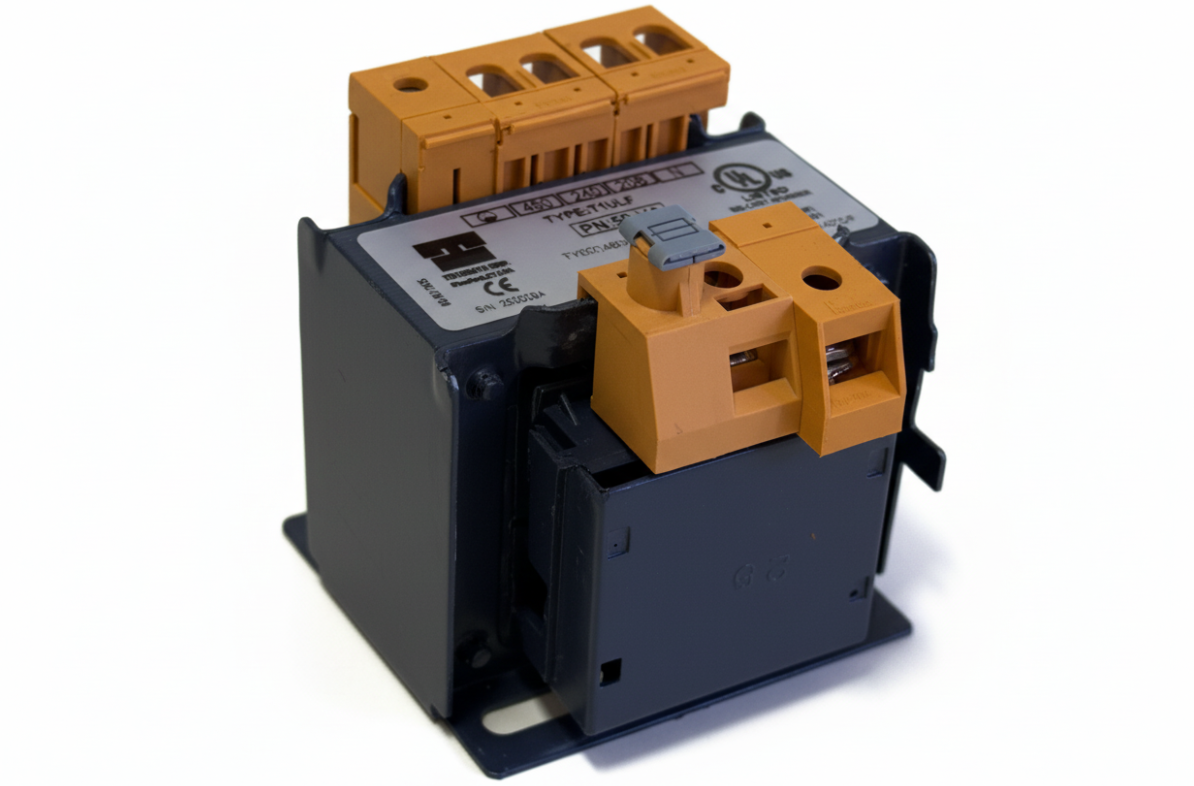

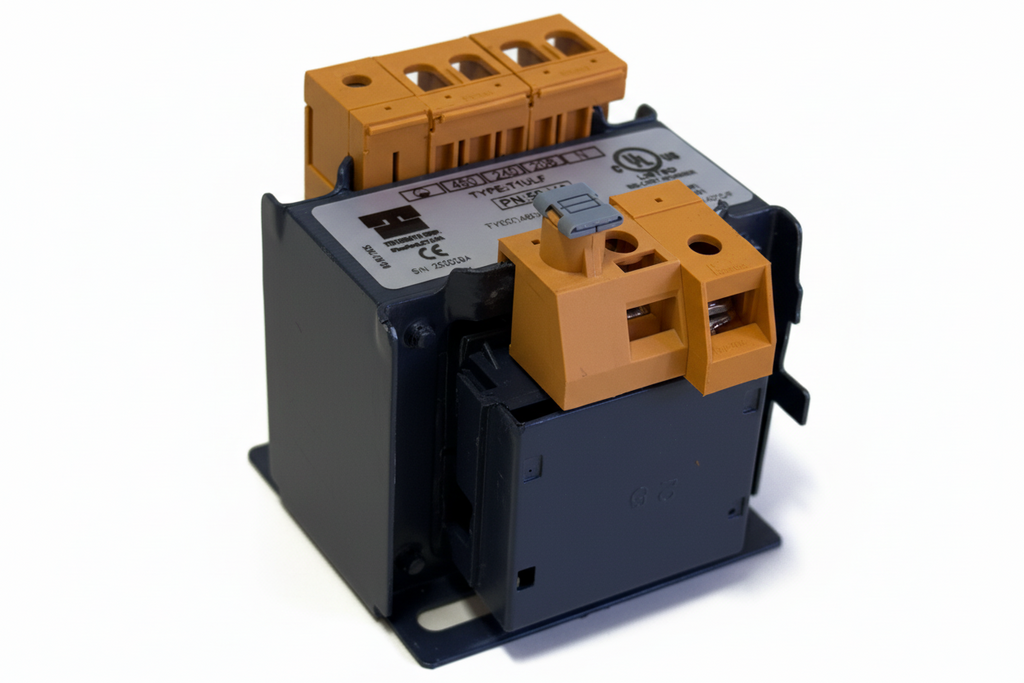

100VA Single Phase transformer, 208-240-480V primary /120V fused secondary.

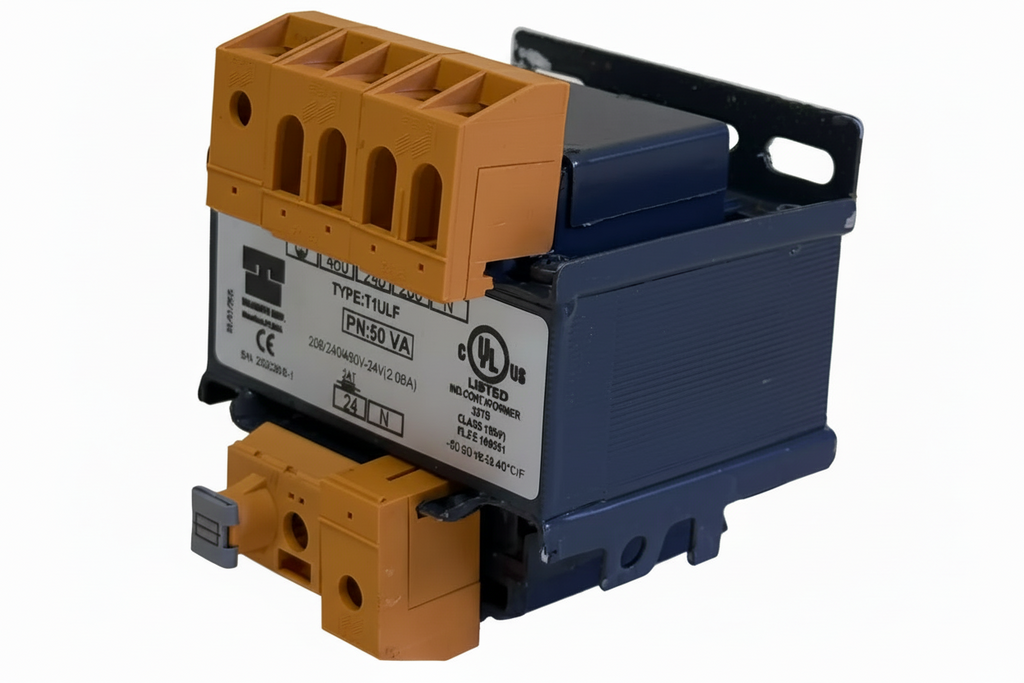

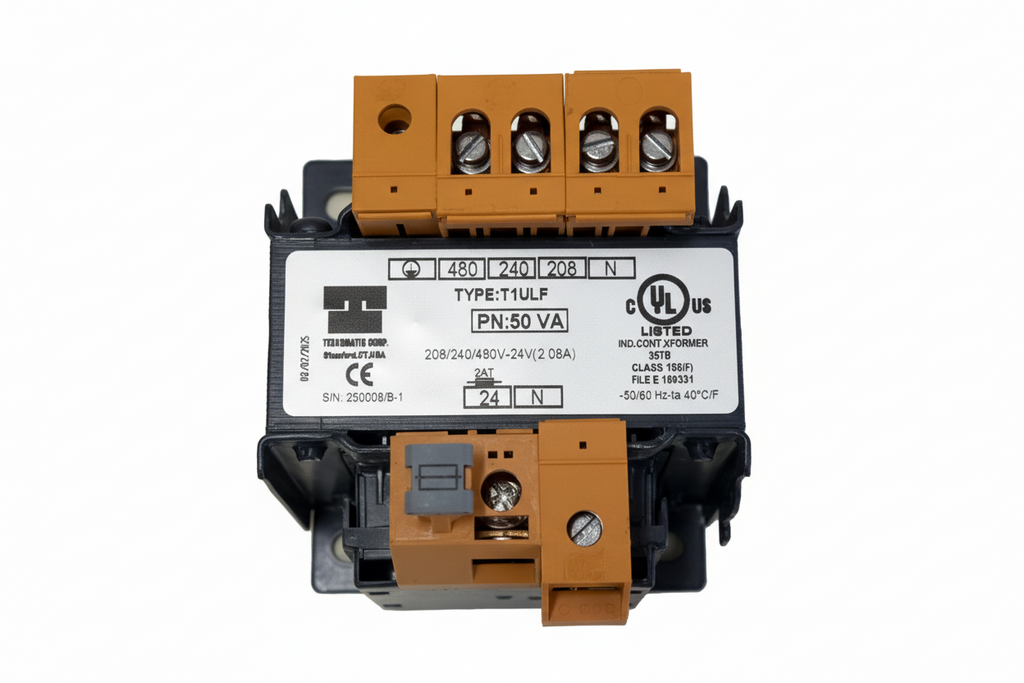

Note: The images shown are representative and apply to all transformers in this series regardless of voltage rating.
Compactness, precision and safety for dedicated power supplies and control applications.
Meth Group's single-phase transformers offer high insulation, voltage stability and small size. They are designed for industrial applications, automation, medical systems and conditions requiring maximum reliability and continuity of operation.
Available with UL-CSA and ENEC certifications and in versions for DIN rail mounting, with built-in thermal protection, universal input and medical models.
Applications:
Switchboards, industrial automation, medical equipment, measurement, automation and control systems.
