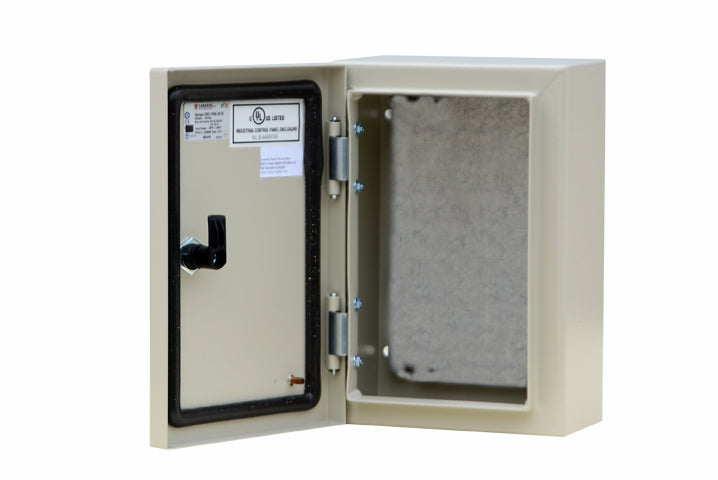

Metal Enclosure - 28020.35 — 12x8x6" (300x200x150mm)

DIMENSIONS: 12x8x6" (300x200x150mm). Single door. View Technical Specs Compatible accessories — Mounting Plate: Part #28800. Sold separately.

Description

D93: Wall boxes are available with solid or transparent door, with or without internal door. The welded monobloc box is provided with an internal 2 mm FeZn plate and a bottom cable-entry flange.

Casing:

1,5 mm thick carbon steel; welded monobloc structure.

Internal Plate:

2 mm thick galvanised steel sheet (Sendzimir), not adjustable.

Cable Entry:

Bottom sealed flange.

Solid door:

1,5 mm thickness; polyurethane sealing gasket; Pre-drilled internal supports for elements mounting (from H606); pvc locking systems with 3 mm double-comb tool insert, other configurations are available. 120° standard opening with reversible left hinges.

Earthing:

M6 pins to be welded on structure and doors.

Painting:

Thermosetting powders.

Material:

1,5 mm thick carbon steel sheet.

Standard Colours:

RAL7035 textured.

SIDE-BY-SIDE CONFIGURATIONS WITH ADJACENT HINGES REQUIRE A 10 mm SPACER

IP66 for internal use (for external use contact our technical department at info@controls4sale.com)

IK10 impact resistance degree for IEC EN 62208

NEMA4

Technical data subject to change without notice
