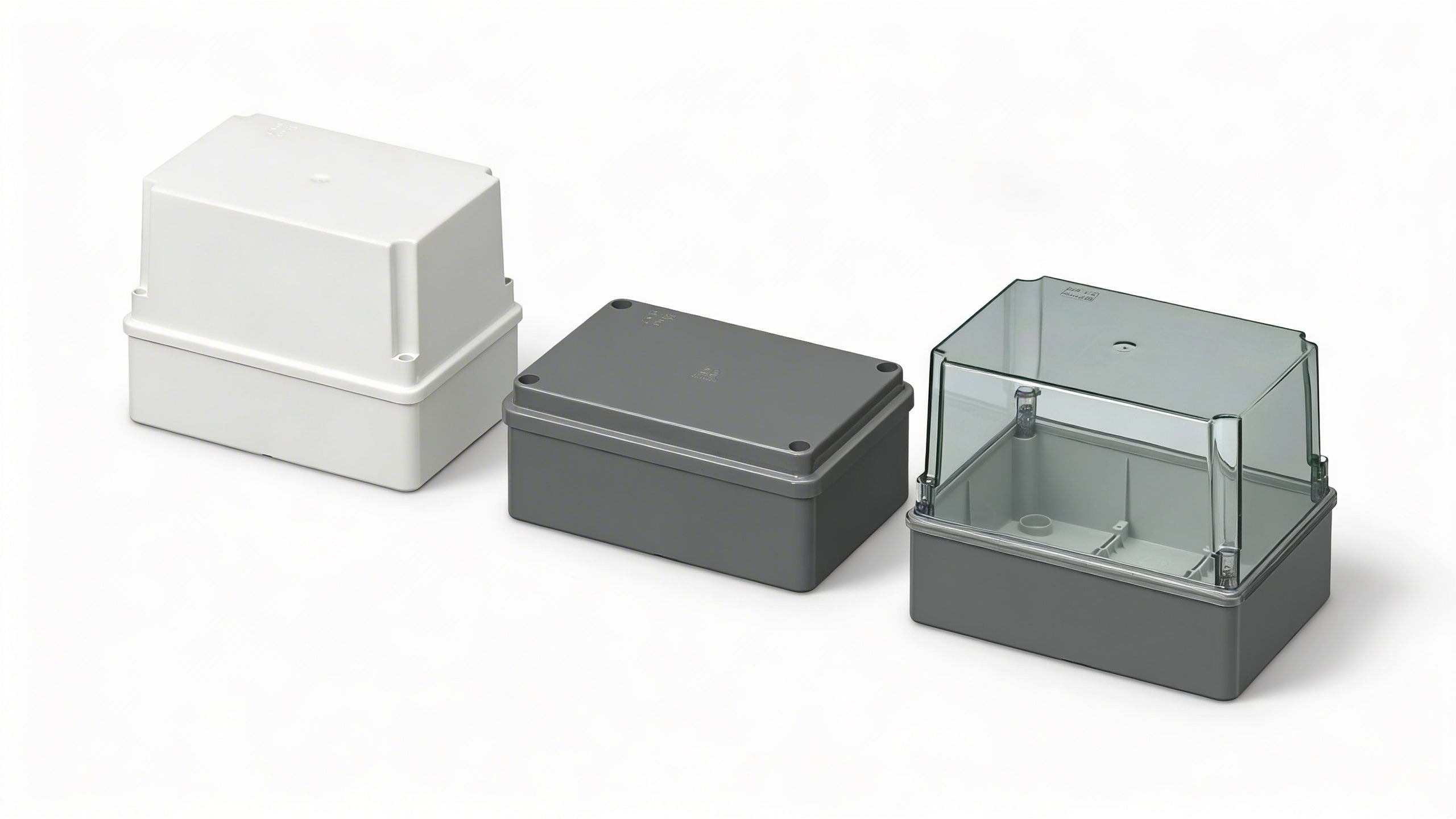

ABS Junction Box - 410-C9 — 14.96x11.81x4.72" (380x300x120mm)

ABS box Smooth sided box IP56 dim. 380x300x120mm

FEATURES AND SPECIFICATIONS

STANDARD COLOUR: GREY RAL 7035.

HEAT-RESISTANT MATERIAL: HALOGEN-FREE ABS-BASED SHOCKPROOF TECHNOPOLYMER.

SELF-EXTINGUISHING MATERIAL: SHOCKPROOF ABS-BASED SELF-EXTINGUISHING V0 (UL94) TECHNOPOLYMER.

FOR OUTDOOR USE: HIGH RESISTANCE TO AGING AND UV RAYS.

HALOGEN FREE: CADMIUM AND HALOGEN FREE ACID AND BASIC CHEMICALS RESISTANT PLASTIC MATERIALS.

IMPACT RESISTANCE: IK07 (UP TO 6J).

RESISTANCE TO ABNORMAL HEAT (GWT ACCORDING TO IEC 60695-2-11): 650 °C FOR STANDARD VERSIONS / 960 °C FOR VERSIONS TYPE A (SELF-EXTINGUISHING) / 850 °C FOR POLYCARBONATE TYPE.

TEMPERATURES DURING INSTALLATION: MINIMUM -25 °C, MAXIMUM +60 °C.

OPERATING TEMPERATURES: MINIMUM -25 °C, MAXIMUM +70 °C (ABS) / MAXIMUM +120 °C (POLYCARBONATE).

RATED OPERATING VOLTAGE: 1000 Vac 1500 Vdc.

PROTECTION RATING ACCORDING TO EN60529 STANDARD: IP55 FOR NIPPLES VERSION, IP67 FOR SMOOTH SIDES AND KNOCKOUTS VERSIONS.

FAST CLOSING WITH 1/4 TURN CAPTIVE SCREWS AND TWO-SIDED PLUMBING SYSTEM.

DOUBLE INSULATION POSSIBILITY ACCORDING TO IEC 60670-1/24 STANDARDS BY MEANS OF SCREW CAPS.

SUITABLE FOR HOSTING BOTTOM BACK PLATES AND DIN RAILS.

INDIVIDUALLY PACKED WITH TRANSPARENT PROTECTIVE FILM AND IN ROBUST CARTONS WITH IDENTIFICATION LABEL.

STANDARD: EN 60670-1:2005, EN 60670-22:2006.

IN COMPLIANCE WITH THE SAFETY OBJECTIVES OF LOW-VOLTAGE DIRECTIVE 2014/3.
