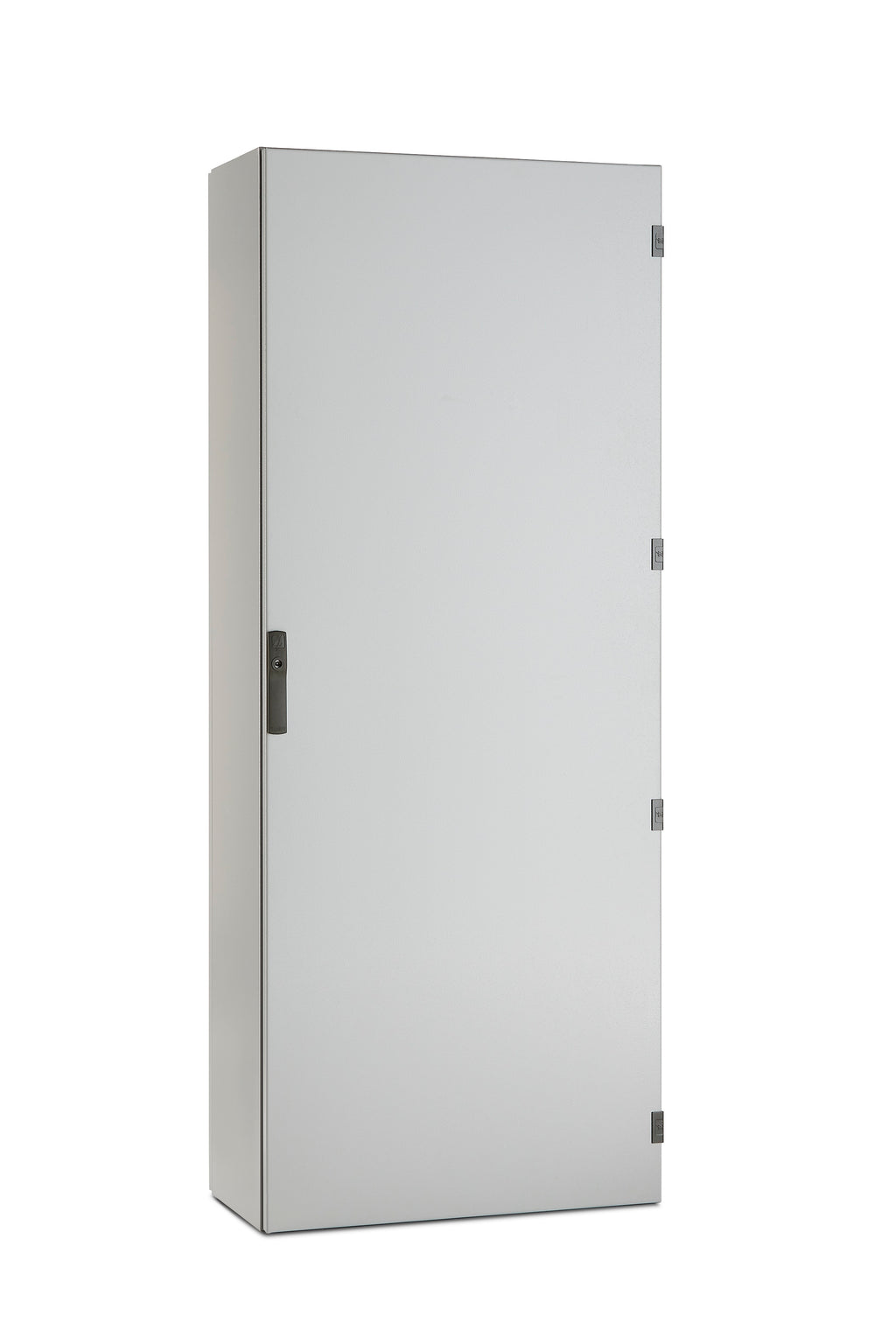

Cabinet - TFR-3-FL — 24x24x70" (600x600x1800mm)

Free-standing control enclosure, 70"H x 24"W x 24"D with single door and galvanized subplate. Type 1, 12 rated, RAL 7035 finish. LTL freight shipping required.

Description

TFR: Monobloc-structure cabinets; bottom panel with cable entry flange, side panels and roof are completely welded; back panel fixed with screws. Available with solid or transparent door, with or without internal door. Adjustable 2,5 mm FeZn internal plate. Plinth application configuration.

THE EQUIPMENT INCLUDES: SOLID DOOR - INTERNAL PLATE - BACK PANEL

BY SEPARATED ORDERING: SIDE PANELS - PLINTH THE UL/CSA MARK MUST BE SPECIFICALLY REQUESTED IN THE ORDER

Structure:

1,5 mm thick steel sheet drawn-columns bearing frame, welded on roof and bottom. 25 mm pitch drilling scheme.

Side and back panels:

1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure.

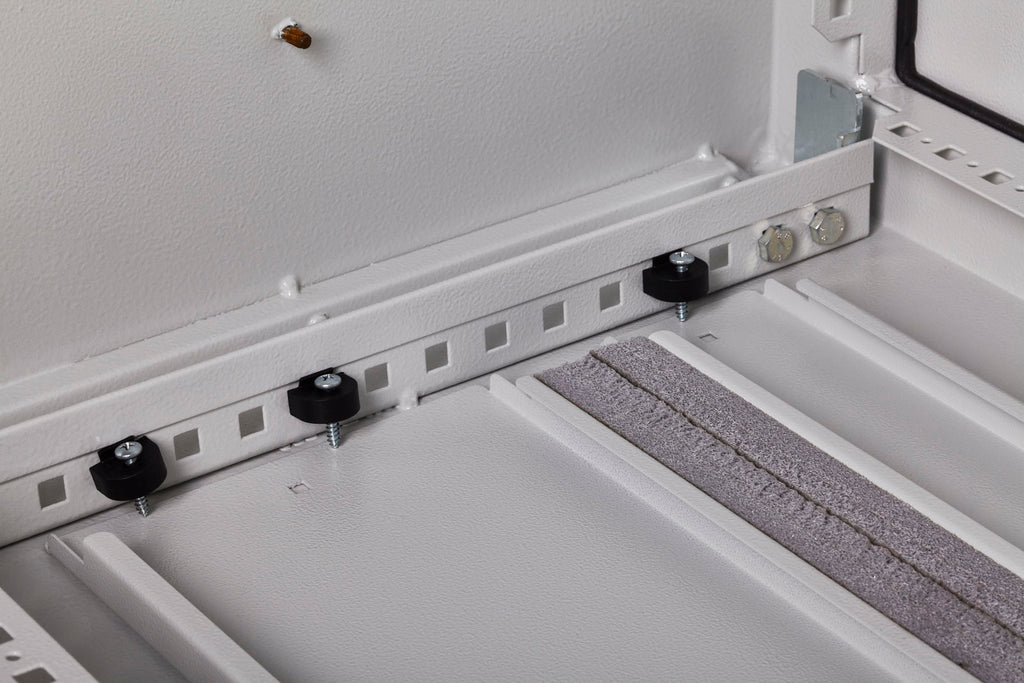

Internal plate:

2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth.

Solid door:

1,8 mm thick steel sheet; 20x20 mm pre-drilled tubular frame; polyurethane sealing gasket. 100° standard opening with reversible right hinges. Standard central locking systems with double-comb tool insert and 4 anchor points. Other configurations are available.

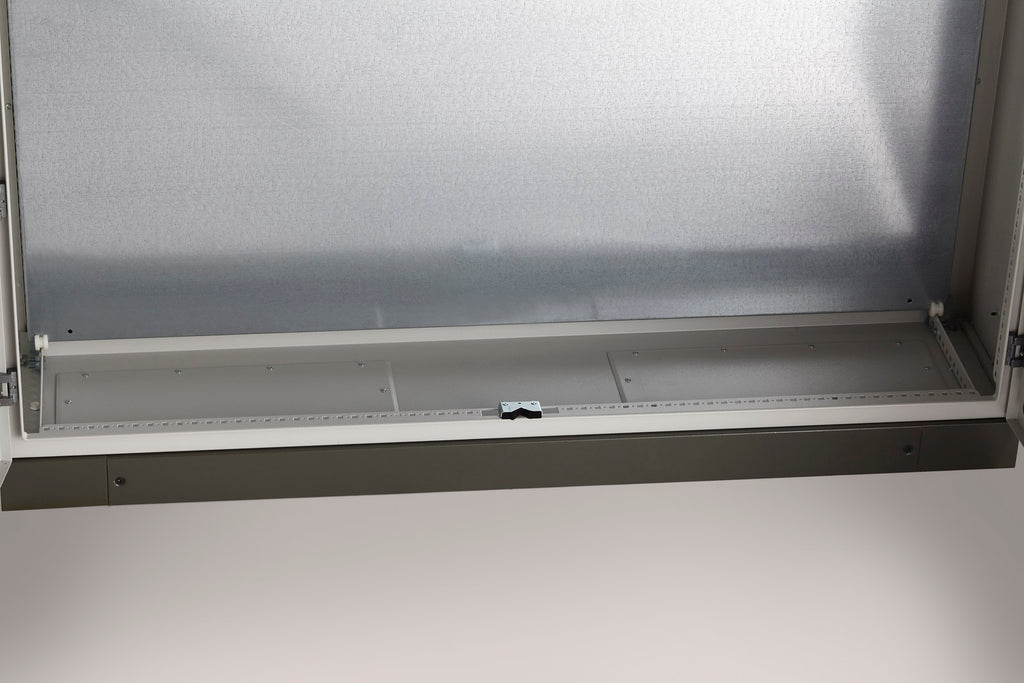

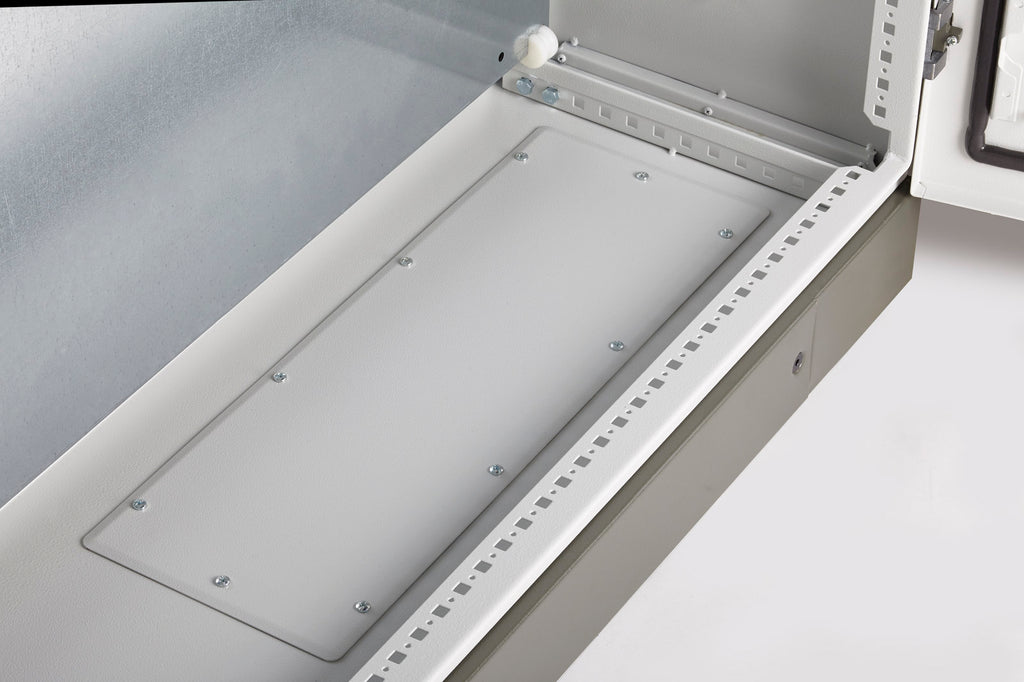

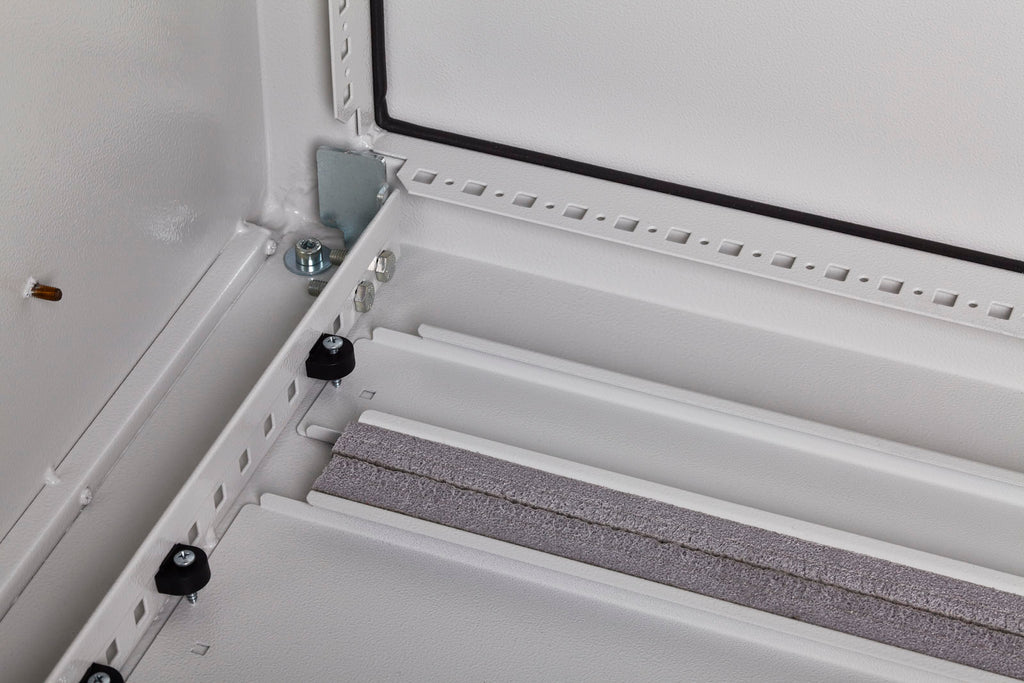

Cable entry flange:

1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket.

Earthing:

M6 pins to be welded on structure, doors and panels.

Painting:

Thermosetting powders.

Material:

1,5/1,8 mm thick carbon steel sheet.

Standard colours: RAL7035 textured - RAL7032 on request - Plinth: RAL7009 textured

IP66 for internal use (for external use contact our technical department at info@controls4sale.com)

IK10 impact resistance degree according to IEC EN 62208

NEMA12

Technical data subject to change without notice
