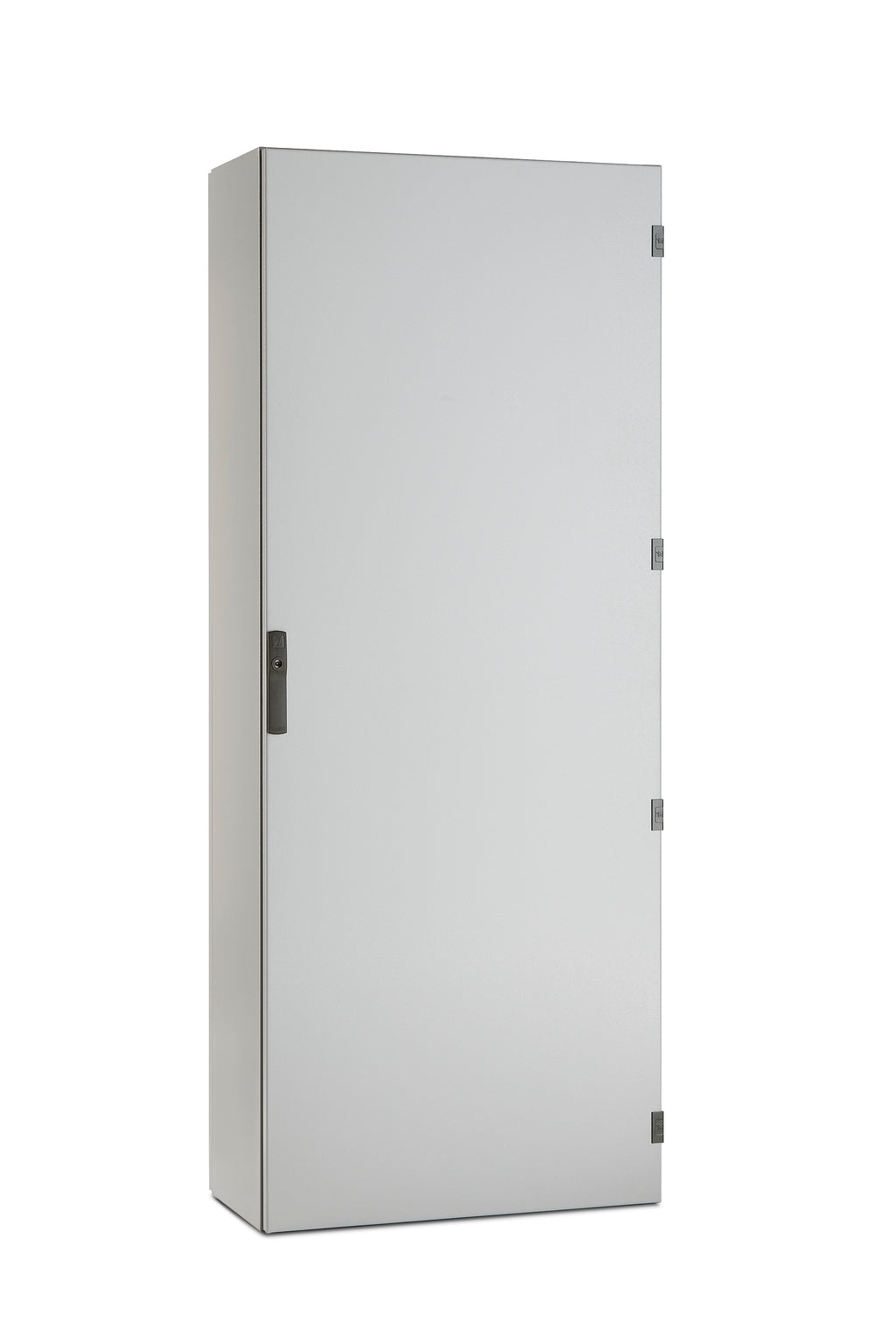

Cabinet - TFR-31-FL — 40x20x71" (1000x500x1800mm)

Standalone electrical enclosure, 71"H x 40"W x 20"D with single door access. Galvanized subplate and bottom flange included. Type 1, 12 rated construction in RAL 7035 finish. LTL freight shipping required. See technical specs for full details. Compatible accessories — Plinth: Part #TSR-612. Sold separately.

Description

TFR: Monobloc-structure cabinets; bottom panel with cable entry flange, side panels and roof are completely welded; back panel fixed with screws. Available with solid or transparent door, with or without internal door. Adjustable 2,5 mm FeZn internal plate. Plinth application configuration.

THE EQUIPMENT INCLUDES: SOLID DOOR - INTERNAL PLATE - BACK PANEL

BY SEPARATED ORDERING: SIDE PANELS - PLINTH THE UL/CSA MARK MUST BE SPECIFICALLY REQUESTED IN THE ORDER

Structure:

1,5 mm thick steel sheet drawn-columns bearing frame, welded on roof and bottom. 25 mm pitch drilling scheme.

Side and back panels:

1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure.

Internal plate:

2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth.

Solid door:

1,8 mm thick steel sheet; 20x20 mm pre-drilled tubular frame; polyurethane sealing gasket. 100° standard opening with reversible right hinges. Standard central locking systems with double-comb tool insert and 4 anchor points. Other configurations are available.

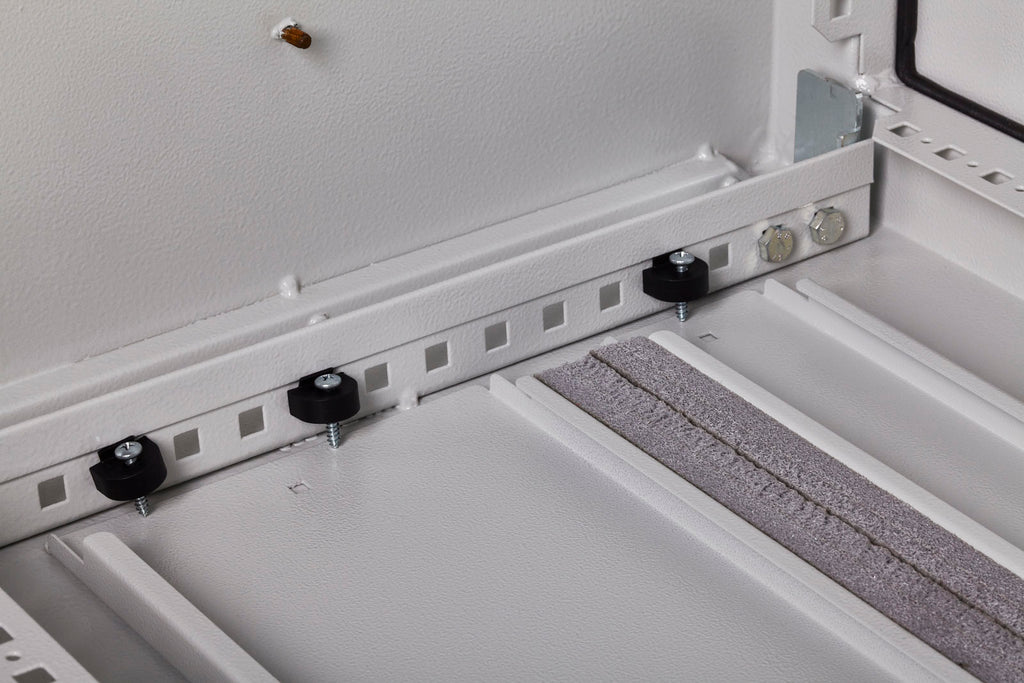

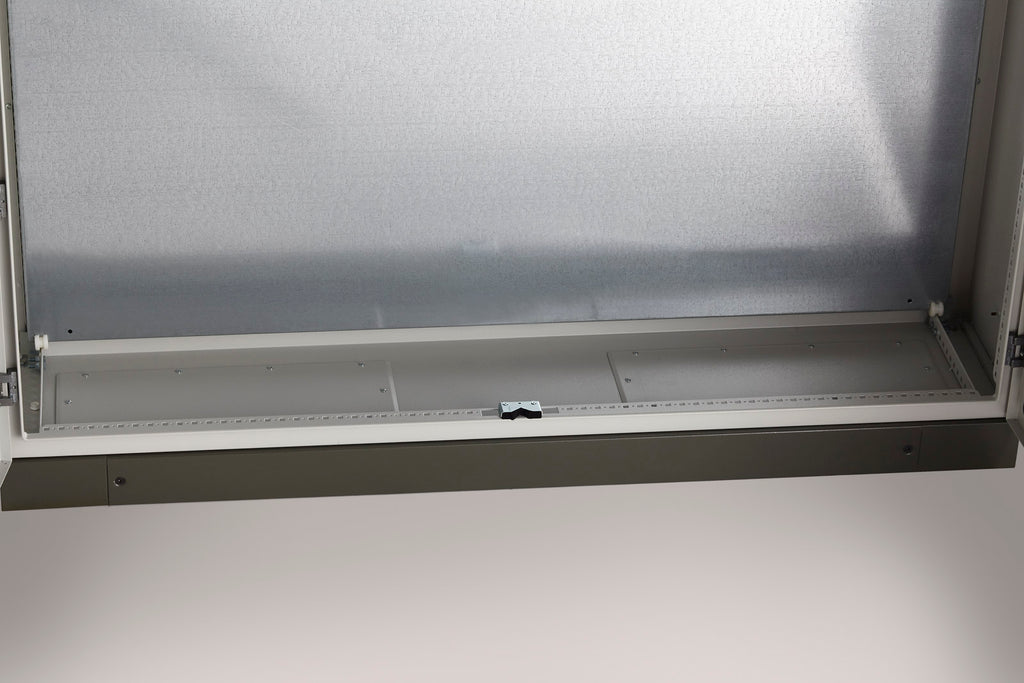

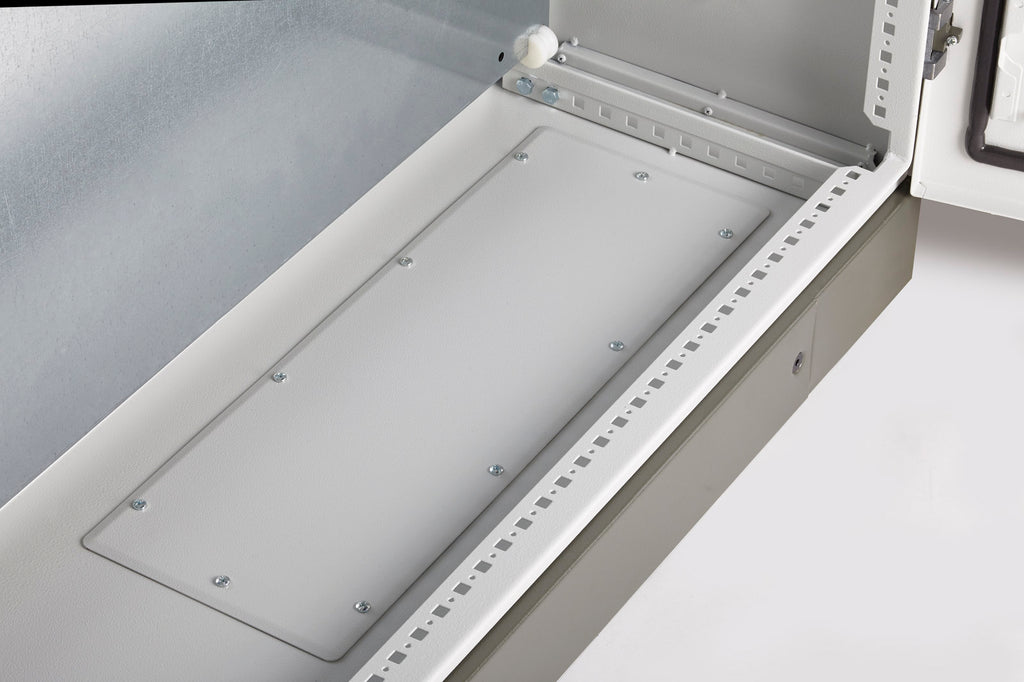

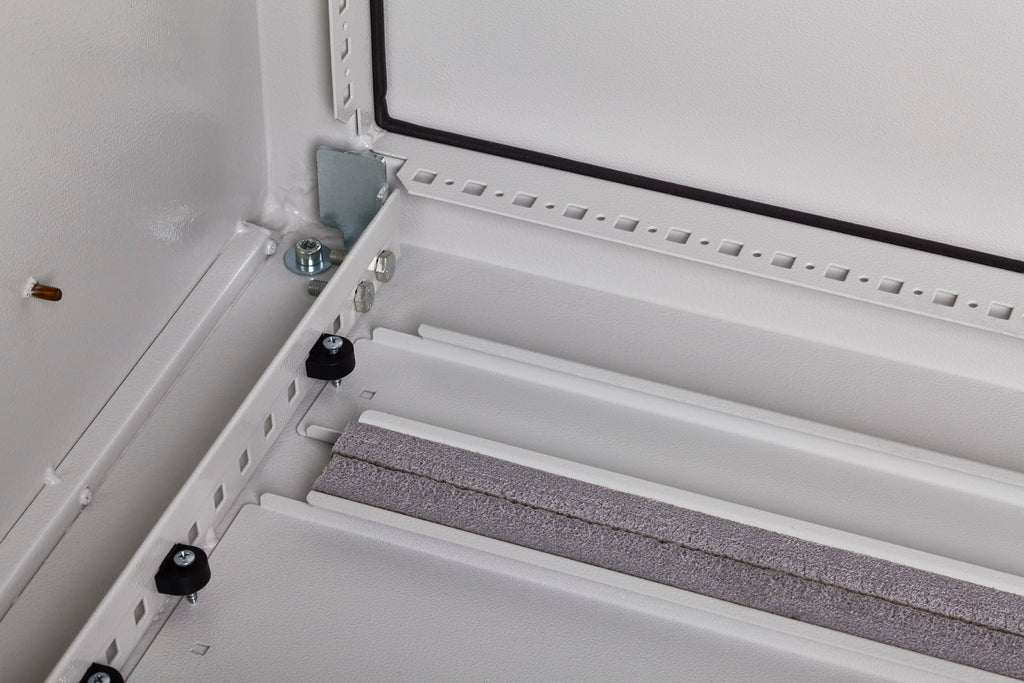

Cable entry flange:

1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket.

Earthing:

M6 pins to be welded on structure, doors and panels.

Painting:

Thermosetting powders.

Material:

1,5/1,8 mm thick carbon steel sheet.

Standard colours: RAL7035 textured - RAL7032 on request - Plinth: RAL7009 textured

IP66 for internal use (for external use contact our technical department at info@controls4sale.com)

IK10 impact resistance degree according to IEC EN 62208

NEMA12

Technical data subject to change without notice
