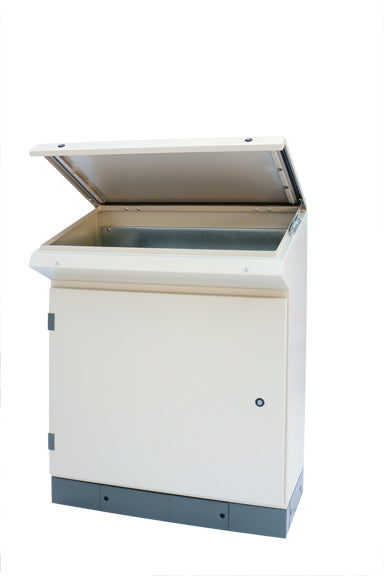

Console - LM-6014.35 — 24x16x38.6" (600x400x980mm)

TYPE 12 console with 38.6"H x 24"W x 16"D dimensions, single-door access, and bottom gland plate for cable management. Mounting plate provided. LTL freight shipment required. Compatible accessories — Plinth: Part #LVE-401 - SS, #TSR-601. Sold separately.

Monobloc control console with 14° tilt desk and open position retainer. Same specs and dimensions as the LVE model at a lower price. Bottom cable entry flange, 2mm FeZn fixed internal plate.

Available Configurations
Internal plate with plinth / Internal plate without plinth

Construction
1.5mm welded steel structure · 2.0mm galvanised internal plate (Sendzimir) · 1.5mm steel cable entry flange with neoprene gasket

Doors
Solid door: polyurethane gasket, 100° opening, reversible left hinges, 3mm double-comb lock · Desk door: 14° tilt, top hinges, open position retainer, 3mm double-comb lock

Finish
Thermosetting powder coat · RAL7035 textured / Plinth RAL7009 textured

IP55 · IK10 · NEMA 12

Technical data subject to change without notice.
